- Floorplan - 2017 Entegra Coach Cornerstone 45B
- Our Price: $289,989
-
Sleeps 4
-
4 Slides
-
Bath and a HalfRear Bath
-
45ft Long
-
Midnight Pearl, Mocha, Stanfor

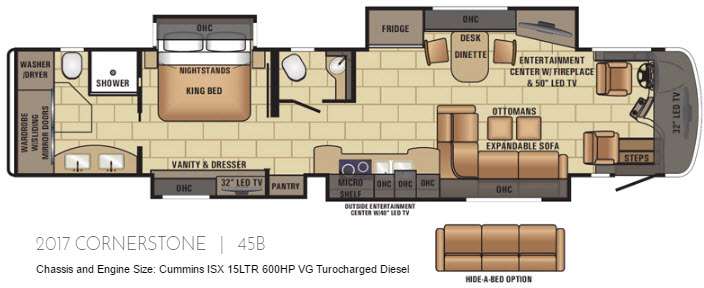

45B Floorplan
Specifications
Sleeps | 4 | Slides | 4 |
Length | 44 ft 11 in | Ext Width | 8 ft 5 in |
Ext Height | 12 ft 11 in | Int Height | 7 ft |
Interior Color | Midnight Pearl, Mocha, Stanfor | Exterior Color | 7 choices |
Hitch Weight | 20000 lbs | GVWR | 54000 lbs |
Fresh Water Capacity | 100 gals | Grey Water Capacity | 62 gals |
Black Water Capacity | 41 gals | Tire Size | 22.5" |
Fuel Type | Diesel | Engine | Cummins ISX 600HP |
Chassis | Spartan K3 |
Description
600HPs
If you are looking for DUAL sinks in a rear master bath, an entertainment center with a fireplace, and a half bath this quad slide Entegra Coach Cornerstone 45B class A diesel motor home is your next RV!
On the passenger side of the motor home you will find a slide with an expandable sofa and two ottomans or you can choose an optional hide-a-bed sofa. Also within the slide is a double kitchen sink, two burner range, microwave, overhead cabinets, and a shelf. The opposite side of the motor home offers a slide with an entertainment center, fireplace and a 50" LED TV, and a dinette with chairs, desk, plus a refrigerator.
Just past the slide in the main living area you will find a half bath.
The bedroom offers a king bed slide with overhead cabinets, and nightstands on either side of the bed. Across from the foot of the bed you will find a slide out with a vanity, dresser, and 32" LED TV in the bedroom, plus a pantry that is located in the hallway beside the kitchen countertop.
In the rear there is a master bath featuring a vanity with DUAL sinks on one side, plus a shower and toilet on the opposite side. Along the rear wall you will find a wardrobe with sliding mirror doors and a washer and dryer.
Outside you can even enjoy an exterior entertainment center with a 40" LED TV when relaxing in the great outdoors.
Features
- Spartan K3 raised rail chassis
- Cummins 15 liter ISX turbocharged 600 HP engine 1,950 lb.-ft. torque at 1,200 RPM
- Allison 4000 MH 6-speed transmission
- 1,500 watt engine block heater
- Reyco Granning IFS independent front air suspension
- Reyco Granning front axle 20,000-lb. wide track
- Dana rear axle 23,000-lb., tag axle 14,000-lb.
- 4.30 "Quiet-Gear" rear axle ratio
- 20,000-lb. hitch with 7/4-pin plug
- Tag axle air dump & Reyco Granning Passive Steer Tag axle
- Hadley air leveling system
- Side-mounted radiator
- All-wheel ABS disc brakes and three-stage engine brake
- Automatic Traction Control
- Bilstein shocks - 60MM in front and 46MM rear/tag
- 150-gal. fuel tank (dual fill)
- Dual DEF fill
- Michelin 365/70R 22.5" tires (front) and 315/80R 22.5" tires (rear)
- 55-degree turning radius
- Chassis batteries (2)
- 210-amp alternator
- Remote air connection
- X-Bridge frames welded into chassis frame
- Enclosed, insulated and heated floor and thermostat controlled heating in storage area
- Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
- 2" x 4" floor truss construction
- 3/4" - 7-ply plywood main floor decking
- Aluma-Tru Superstructure construction on 12" - 16" centers
- 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
- Flush-mounted electric-powered slide out rooms with Vegatouch control
- One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss
- Steel-reinforced front cap and windshield frame
- Aqua-Hot 450 Diesel hydronic water and heating system with in-floor heat throughout
- 15,000-BTU low profile A/C's (3) with heat pump, Vegatouch thermostat, and roof to ground condensation drain tubes
- 50-amp power cord with electric reel
- Onan 12,500-watt diesel generator with auto gen start on powered slide out tray
- 2,800-watt and 2,000-watt pure sine wave inverter
- L16 AGM batteries (4), (6v/390 amp hrs. ea.)
- Premium surge protector transfer switch
- Water house w/ electric reel
- Black holding tank sprayer
- Macerator holding tank dump system w/ electric gate valves & manual back-up system
- 360 Siphon tank vent(s)
- SeeLevel tank monitoring system
- City and tank water filtration system
- Winterizing drain system
- 3M front protective film mask
- LED high and low beam headlights
- LED fog lights
- Daytime running lights
- LED marker and turn lights the full length of the coach
- LED docking lights
- LED accent lights on underside of slide out rooms curbside
- Pulsing Third Brake Light
- Lighted grab handle with keypad system
- Keyless entry with key fob
- Deluxe concealed entry step / Lighted Entegra step
- Aire-Secure travel locks for all pocket doors
- Girard power entrance door awning with LED lights
- Girard Ultra window shade awning and Ultra slide out awnings
- Roof mounted Girard Vision dual pitched patio awning with LED lights
- Chrome, heated, remote control, side-view mirrors w/ integrated cameras and blind-spot indicators
- Frameless, tinted, dual-pane, safety-glass windows
- 40" Samsung LED HDTV on TV bracket w/ extend, tilt and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming
- Exterior utility center, heated and enclosed with system monitor panel
- Powered slide out cargo trays (2)
- Winegard in-motion satellite dome w/ prep for Trav'ler satellite dish
- Winegard Rayzar powered TV antenna
- Power engine door
- Full-width rear mudflap, with chrome "Cornerstone" nameplate
Cockpit
- Powered flush stepwell cover
- Powered front sun visors and privacy shade
- Ultra-Vision one-piece wrap-around tinted windshield
- Air cooled, 6-way power, lumbar, heated, leather driver and passenger seats with integrated 3-point lap and shoulder safety belts
- VIP soft-touch, wood-grain, leather-wrapped, tilt and telescoping steering wheel w/ integrated controls for radio, cruise, and wipers
- Spartan Message Center with LCD display featuring:
- odometer
- tachometer
- fuel economy
- fuel remaining
- outside air temp.
- coolant temp.
- engine oil temp. and pressure
- transmission temp.
- turbo boost pressure
- air pressure
- trip meter
- speed and voltage
- All-glass paneled, dual 9" capacitive touchscreen in-dash Infotainment center Rand-McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, DVD, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control
- JBL premium audio with calibrated 360-watt DSP amplifier, and 11 speakers including subwoofer
- Hydraulic automatic leveling jack system
- Battery boost switch
- Powered adjustable foot pedals
- Color, adjustable "Total Vision" back-up camera and monitor system w/ side and rear views
- Chrome, LED lit cup holders and dual USB ports in dash
- En-telligent VegaTouch pad system, for complete integration of coach controls
- LED recessed 12V lighting
- High gloss 12" x 24' porcelain tile with granite inlay design
- Powered solar day and black out night shades
- Samsung 50" 4K UHDTV (45B, 45A, 45W); Samsung 48" 4K UHDTV (45J, 45K) in living room
- Samsung 32" LED HDTV in front overhead
- Samsung 32" LED HDTV in bedroom
- Bose SoundTouch 130 home theater system with bluetooth in living area
- Bose Solo 15 sound bar in bedroom
- Blu-ray players in living area & bedroom
- Leather hide-a-bed(s)
- Stacked washer and dryer
- Central vacuum system
- In-step storage with pull-out tray
- LED lit electric fireplace
- Dimmable LED lit quartz countertops with integrated stainless sink
- Cutting Board
- Silverware drawer
- Large deep drawer with waste basket
- Dishwasher with wood raised panel door front
- Induction cooktop
- Whirpool Gold 1.9 cu. ft. convection microwave oven
- Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser
- Tempur-Pedic Cloud Prima king size mattress
- Ceiling fan
- Large cedar-lined wardrobe with automatic light
- LED lit quartz countertops with integrated sink(s)
- Porcelain toilets with push button flush
- Frameless glass shower door
- Porcelain tiled shower walls and floor
- Power vent & skylight
- En-telligent Collision Avoidance System equipped with Collision Warning System, Adaptive Cruise Control, Collision Mitigation System, & Electronic Stability Control
- En-telligent Blind Spot Monitoring System, tuned to detect objects within the lane of traffic on either side of the vehicle
- Security system with glass shatter sensors
- Motion sensor security lights (2)
- Smoke alarm
- Carbon monoxide alarm
- Security safe
- Canadian Standards
- Free-standing table with 4 chairs, hide-a-bed, sofa lounger curbside (45J and 45K)
- L-Sofa Lounger & hide-a-bed (45B)
- 100" sofa with incliner & hide-a-bed (45B)
- Desk with Televator lift (45A)
- Winegard Trav'ler satellite dish - DIRECTV
- Winegard Trav'ler satellite dish - Shaw Direct
- Solar panels (Dual 100-watt) w/ Morningstar SunSaver Duo solar panel charge controller
- 2.8 cu. ft. exterior freezer
All features and specifications are subject to change.
