+56-
Sleeps 5
-
3 Slides
-
Bath and a HalfRear Bath
-
38ft Long
-
32,400 lbs
-
Belmont, Chateau, Largo

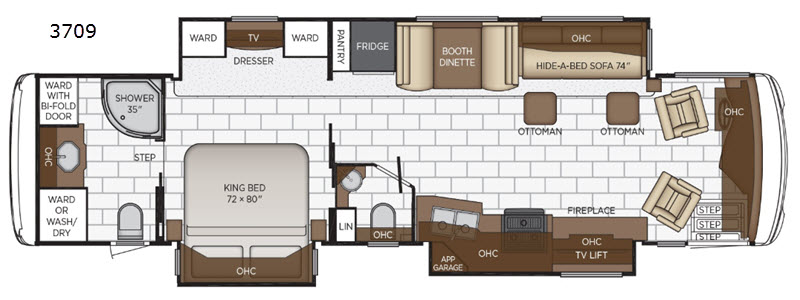

3709 Floorplan
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 37 ft 10 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 6 ft 11 in |
| Interior Color | Belmont, Chateau, Largo | Exterior Color | Belmont, Chateau, Largo |
| Hitch Weight | 10000 lbs | GVWR | 38000 lbs |
| Dry Weight | 32400 lbs | Cargo Capacity | 5600 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 75 gals |
| Black Water Capacity | 55 gals | Furnace BTU | 54000 btu |
| Generator | 8.0 kW Cummins Onan Diesel Quiet Series | Fuel Type | Diesel |
| Miles | 15819 | Engine | Cummins |
| Chassis | Freightliner | Horsepower | 360 hp |
| Fuel Capacity | 100 gals | Wheelbase | 242 in |
| Available Beds | King | Torque | 800 ft-lb |
| Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 35" | Number of Awnings | 1 |
| Axle Weight Front | 14000 lbs | Axle Weight Rear | 24000 lbs |
| LP Tank Capacity | 32 gals | Water Heater Capacity | 10 gal |
| Water Heater Type | Gas/Electric DSI | AC BTU | 30000 btu |
| TV Info | LR Samsung 4K LED TV, BR Samsung 4K LED TV | Awning Info | Power with Wind Sensor, Remote, and LED Lights |
| Washer/Dryer Available | Yes | Gross Combined Weight | 48000 lbs |
| Shower Type | Radius | Electrical Service | 50 amp |
Description
Miles- 15,819
Newmar Ventana Class A diesel motorhome 3709 highlights:
- Full and Half Bath
- King Bed
- Fireplace
- Sofa with Ottomans
- Master Suite
- Girard Power Awning
You won't believe all that comes standard in this Ventana Class A diesel motorhome! The full rear bathroom has a 35" radius shower, a wardrobe prepped for the optional washer and dryer to be added, and an additional wardrobe with a bi-fold door. As you walk through the private bedroom, you will find a pillowtop king-size bed, wardrobes on either side of the dresser, and a Samsung LED 4K TV for those sleepless nights. The pantry and Norcold 10-cu. ft. refrigerator are big enough to hold all of your favorite snacks and drinks, and you can enjoy game night at the booth dinette or simply relax in front of the fireplace on the 74" hide-a-bed sofa with ottomans. The front swivel captain's chairs, the Comfort Drive steering with adjustable control, and the glass dash instrumental panel ensure that you will have a comfortable and safe drive to your destination!
Travel with confidence in a Newmar Ventana Class A diesel motorhome that is filled with luxurious features and puts safety first! From the convex exterior mirrors with a remote control, turn signal indicators, and defrost to the digital instrument panel with side-view cameras and numerous optional upgrades, like the Rand McNally navigation system, you will be impressed. Speaking of options, you can choose your motorhome to be built on the optional Spartan chassis or keep it with the Freightliner chassis, and it also comes standard with their industry-exclusive full-paint Masterpiece finish for you to stand out on the road. Ventana is dedicated to making your journey as easy as possible with entertainment features, flexible furniture configurations, fine dining with a well-appointed Ventana kitchen, and a personal hideaway with several bathroom arrangements. Whether you want to spend a long day by the water or a road trip to visit family, there is a model for you!
Features
Standard Features (2021)
Exterior Standard Features
- Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control, Defrost and Turn Signals
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Letters
- Undercoating
- Wheelchair Lift on 4311 Floor Plan
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
- Stainless Steel Exterior Trim Piece on Front Cap and Grille Area
- Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell
- Hammock Backer
Optional Exterior Features
- Patio Hammock Package
- Chrome Power Baggage Door Locks
- Flagpole Bracket
- Rear Ladder
- Storage Tray 26" x 91" Non-Power, Location-Bay 2*
- Storage Tray 30" x 90" Power, Location-Bay 2*
- Storage Tray 32" x 91" Non-Power, Location-Bay 2*
- Storage Tray 32" x 91" Non-Power, Location-Bay 3*
- Storage Tray 43" x 56" Non-Power, Location-Bay 3*
- Storage Tray 43" x 56" Non-Power, Location-Bay 4*
Construction Standard Features
- Gel-coated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Automatic Mechanical Lock Arms on Slide out Rooms-Scissor Style
- Polar Pak R19 Batten Insulation in Roof
- Fiberglass Roof and Integrated Gutter Rail
- Power Opening Entrance Door for Wheelchair Lift on 4311
- Egress Door with Ladder System
Chassis Standard Features
- Aluminum Wheels
- Cruise Control
- Comfort Drive™ Steering With Adjustable Control
- Manual Tilt and Telescope Steering Column with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-up Alarm
- Anti-lock Braking System
- Chassis Battery Disconnect
- V-Ride Drive Axle Suspension on Freightliner® Chassis
- Glass Dash Instrument Panel
Optional Chassis Features
- Freightliner® 360hp on 34’-37’ Floor Plans
- Freightliner® 400hp on 40-43’ Floor Plans
Windows, Awnings & Vents Standard Features
- Frameless Double-Pane Tinted Safety Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Girard® G2000 Power Side and Entrance Door Awning with Wind Sensor, Remote Control & LED Lights
- Slide out Awning Covers
- One-piece Tinted Windshield
Optional Windows, Awnings, & Vents Features
- Carefree Window Awning Pkg. of (3), 1-Bedroom, 1-Off Door Side Living Room, 1-Door Side Living Room*
- Carefree Window Awning Pkg. of (4), 1-Bedroom, 1-Off Door Side Living Room, 2-Door Side Living Room*
- Carefree Window Awning Pkg. of (5), 1-Bedroom, 1-Off Door Side Living Room, 2-Door Side Living Room*
- Kitchen Window*
- Screen Door Over Wheelchair Lift Area*
- Two Nova Side Awnings
- Bunk Windows*
Air Conditioning & Heating Standard Features
- Two 15M Penguin™ Heat Pump Air Conditioners
- Three 15M Penguin™ Heat Pump Air Conditioner and Energy Management System on 43’*
- Propane Gas Furnace with Ducted Heat on 34’-40’ Floor Plans
- Hydronic Zone Heating System with Continuous Hot Water on 43’ Floor Plans
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Wall Mounted Sensors for Heating and Air Conditioning
Optional Air Conditioning & Heating Features
- Hydronic Zone Diesel Heat with Continuous Hot Water
Electrical Standard Features
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Four 6-Volt House Batteries on Pull-out Tray
- Battery Disconnect Switch for House Battery
- 10 Watt Solar Panel to Charge Chassis Battery
- 2000 Watt Pure Sine Inverter
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Light on Door side
- Mid-ship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Manually Operated Hold-to-Run Slide out Switch
- Cable TV Connection
- Interior Courtesy Lights
- USB Charger at Dinette & Bedroom Nightstand
- Wireless Charging Mat Built into Dash and the Passenger Console
- USB Outlet at Dash for Driver Use
- Spare Fuses in Chassis and House Fuse Panels
- Automatic Generator Start on Low Battery or Temperature Setting
- Energy Management System
- Multiplex Lighting Control System
- Dimmable/Adjustable Reading Lights at Head of Bed
- 110 Volt Recept in Bed Overhead with Two Pass-through Ports
- 110V/USB Outlet at Head of Each Bunk Area*
- Power Rewind Reel with 33’ Cord*
- Power Rewind Reel with 50’ Cord*
Optional Electrical Features
- Solar Prep with Six Gauge Wire Run from the Roof to the House Battery Compartment
- Four Flexible 100 Watt Solar Panels on Roof
- Transfer Switch with Surge Protector
Plumbing & Bath Standard Features
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Systems Monitor Panel
- Sentrel Acrylic Shower Walls with Glass Door*
- Water Filter for Entire Unit
- Exterior Shower
- Power Water Hose Reel
- Auto Fill in Water Works Compartment
- Aqua Miser® Shower System
Optional Plumbing & Bath Features
- Fold-Down Shower Seat
- Hot Water Line to Generator Area*
Cabinets & Furniture Standard Features
- Bermuda Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Designer Doors-Matte Finish
- Concealed Hinges on Cabinet Doors
- Polished Solid Surface Countertop in Kitchen with Undermounted Stainless Steel Sink and Sink Covers
- Polished Solid Surface Countertop in Bathroom and Bedroom
- Dinette with Power Adjusted Table, Bench Seat and Folding Chair on Wheelchair Accessible Floor Plan*
- Lifts on Bed Top
- Passenger Seat Workstation
- Pull-out Pantry Shelves*
- Drawers with Full Extension Ball Bearing Guides
- Ultrafabric Sofa and Driver/Passenger Seats
- Driver/Passenger Seats with Six-way Power, Power Lumbar and Footrest
- Plush Pillow Top Mattress
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Appliance Garage in Kitchen*
- Two Ottomans*
- Mesh Cell Phone Holder at Each Bunk Bed*
- Molded Silverware Divider Tray
- Soft-close Cabinet Drawers
- Push-to-release Drawer Slides in Pantry
- Villa Comfort Fit Convertible Booth Dinette
- Two Recliners with Reading Lights
Optional Cabinets & Furniture Features
- Carmel Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Doors-Matte Finish
- Glacier Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Doors-Matte Finish
- Newport Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Doors-Matte Finish
- Queen Bed
- Comfort Booth Dinette
- Comfort Booth Dinette with Steel Frame and Seatbelt
- Buffet Dinette Two Fixed/Two Folding Chairs
- Buffet Dinette with Freestanding Table Two Fixed/Two Folding Chairs
- Buffet Dinette, Two Fixed/Two Folding Chairs on 4311
- Buffet/Dinette with Rollaway Table, Two Fixed/Two Folding Chairs
- Buffet Dinette Table and Four Folding Chairs
- Sleep Number® R5 Radius Corner Air Mattress
- Combination Desk with Buffet Table, Two Fixed/Two Folding Chairs
- Combination Desk/Dinette with Freestanding Hidden Leaf Table, Two Fixed/Two Folding Chairs
- Combination Desk with Buffet Dinette, Two Fixed/Two Folding Chairs
- Combination Desk/Dinette with Rollaway Table, Two Fixed/Two Folding Chairs
- Two Recliners with Lampstand
- Two Recliners, Lampstand, Reading Lights-Off Door Side, Hide-A-Bed with Memory Foam Mattress-Door Side One Large Window
- Power Incline Head of Bed with Sleep Number® R5 Air Mattress
- Power Incline Retracting Bed Base with Sleep Number® R5 Air Mattress
- Bunk Beds to Convert to Wardrobe*
- Euro Booth Dinette on 3426
- Euro Booth Dinette with Two Table Leaves, Removable Table Leg, & Two Folding Chairs
- Full Height Bed Base on 4311
- Villa Comfort Fit Convertible Booth Dinette
- Powered 74” Theater Seating
- Powered 87” Theater Seating
Appliances Standard Features
- 30” Convection Stainless Steel Microwave with Three-burner Recessed Gas Cooktop
- Air Horns
- Norcold® 10 Cf. Refrigerator with Brushed Aluminum Refrigerator Front
- 10 gal. Gas/Electric Water Heater with Direct-Spark Ignition on 34’-40’ Floor Plans
- Prep for Two-piece Washer/Dryer
- Flush Gas Cooktop Cover of Matching Countertop Material
- Fireplace in Living Area*
Optional Appliances Features
- 30” Convection Microwave in Kitchen Overhead with a Drawer Below Cooktop on 4311
- Norcold® 12 Cf. Four-Door Refrigerator with Icemaker
- Norcold® 12 Cf. Four-Door Refrigerator with Icemaker with Heated Water Line
- Icemaker Added to Standard Norcold® Refrigerator
- Icemaker Added to Standard Norcold® Refrigerator with Heated Water Line
- Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank and Icemaker
- Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank
- Whirlpool® 19.7 Refrigerator with Two Extra 6 Volt Batteries and 22 gal. Propane Tank
- Whirlpool® 19.7 Refrigerator with Two Extra 6 Volt Batteries and 22 gal. Propane Tank and Heated Water Line
- Splendide Two-Piece Stacked Washer/Dryer
- All Electric, Flush Mount Induction Cooktop, Whirlpool® 19.7 Refrigerator, 4 Extra Batteries, 2800 Pure Sine Inverter, Hydronic Heat
- Central Vacuum with Tool Kit
- 110 Volt Heat Pads for Holding Tanks
- Dishwasher in a Drawer with Stainless Steel Front
- Electrical Prep for Freezer without Tray
- Truma Comfort Plus Continuous Hot Water Heater*
Interior Standard Features
- Designer Feature Ceiling
- Tile Floor in Kitchen, Bathroom and Living Area
- Floor Tile Extended into Bedroom Area
- Carpeting on Slide out Floors
- MCD Window Shades
- MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Decorative Wall Art
- Inlaid Three-panel Design Interior Passage Doors
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Quilted Bedspread with Accent Pillows
- Removable Transport Pads for Under Slide out Rollers
- Wastebasket in Kitchen Base Under Sink
Optional Interior Features
- Safe Located in Bedroom Wardrobe
- MCD Power Window Shades with Remote Control on 4311
Audio & Video Standard Features
- Samsung® LED 4K TV and DVD Player in Living and Bedroom Areas* (TV Sizes Vary Per Floor Plan)
- Samsung® 50" LED 4K TV on Televator in Living Area*
- Dash Radio/CD Player with Harman/JBL 180 Watt Sound System and Subwoofer
- Bose® Solo 5 Sound bar Sound System
- Bluetooth Microphone for Sony Dash Radio
- Two Blu-ray Disc Players
- Rearview Color Monitor System with Audio
- Side-view Cameras
- Winegard Digital TV Antenna
- Satellite Dish Prep on Roof
- Two Bedroom Radio Speakers
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- High Definition Component Wiring
- 10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector
Optional Audio & Video Features
- Sirius Satellite Radio Capability (Does not include monthly subscription)
- Samsung® 43” 4K LED TV in Front Overhead
- 50” Televator TV with Fireplace on 4311 Floor Plan
- Exterior Entertainment Center in Sidewall with Samsung® 43” 4K LED TV and Sound bar
- Exterior Entertainment Center in Storage Compartment with Samsung® 43” LED TV and Sound bar
- Omniview NS360 Camera System*
- Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
- Winegard Automatic Dome Satellite
- Winegard In Motion Dome Satellite
- Winegard Automatic Open Face Satellite
- Winegard Automatic Open Face SWM Satellite
- Winegard Rayzar Automatic Digital TV Antenna
- Wi-Fi Ranger Teton / Poplar Combo
- Wi-Fi Ranger Denali / Spruce LTE
- Universal Remote Control
- Universal Toll Module
- Xite Dash Radio, 6” Monitor with Rand McNally Navigation
- Two-19” Skyworth TV/DVD Player at Each Bunk*
*Check on Floorplan Availability
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Save your favorite RVs as you browse. Begin with this one!
Loading
Coastal RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @843-564-1542 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
